Straight Type 3 Way

Two Isolating valves and one equalizing valve are designed in a single body, making the manifold ideal for on-line instrument calibration. Integral valve construction eliminates the use of numerous valves, nipples and fittings.

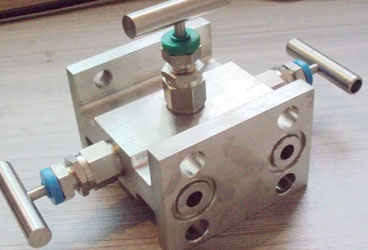

H-Type 3 way

H-Type manifolds is designed for close mounting differential pressure instruments to orifice flanges or orifice changer fittings.The flanged valve outlet is bolted directly to the pressure transmitter body. By bolting standard football flanges to the manifold inlet, the complete assembly can be close coupled to orifice flange taps using eccentric solid bar stock nipples. These manifold valves provide a simple, rugged and dependable installation.

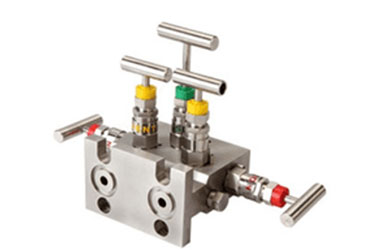

T-Type 5 way

This manifold valve mounts directly to the differential pressure transmitter. The two Isolating valves allow easy removal of the instrument for servicing and the three valves on top of the manifold provide an easy method for accurate field calibration using the manifold vent connection rather than the instrument drain connections.



T-Type 3 way

This manifold valve mounts directly to the differential pressure transmitter. The two hovalves allow easy removal of the instrument for servicing.
