DN

Nom. Pipe Size

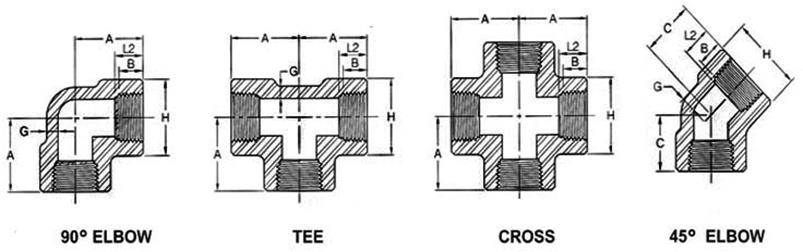

Center to End Elbow, Tee, Cross A

Center to End 45° Elbow
C

Outside Diameter Of Band
H

Minimum Wall Thickness
G

Length of Thread Min. (1)

2000

3000

6000

2000

3000

6000

2000

3000

6000

2000

3000

6000

B

L2

6

1/8”

21

21

25

17

17

19

22

22

25

3.18

3.18

6.35

6.4

6.7

8

1/4”

21

25

28

17

19

22

22

25

33

3.18

3.30

6.60

8.1

10.2

10

3/8”

25

28

33

19

22

25

25

33

38

3.18

3.51

6.98

9.1

10.4

15

1/2”

28

33

38

22

25

28

33

38

46

3.18

4.09

8.15

10.9

13.6

20

3/4”

33

38

44

25

28

33

38

46

56

3.18

4.32

8.53

12.7

13.9

25

1”

38

44

51

28

33

35

46

56

62

3.68

4.98

9.93

14.7

17.3

32

1-1/4”

44

51

60

33

35

43

56

62

75

3.89

5.28

10.59

17.0

18.0

40

1-1/2”

51

60

64

35

43

44

62

75

84

4.01

5.56

11.07

17.8

18.4

50

2”

60

64

83

43

44

52

75

84

102

4.27

7.14

12.09

19.0

19.2

65

2-1/2”

76

83

95

52

52

64

92

102

121

5.61

7.65

15.29

23.6

28.9

80

3”

86

95

106

64

64

79

109

121

146

5.99

8.84

16.64

25.9

30.5

100

4”

106

114

114

79

79

79

146

152

152

6.55

11.18

18.67

27.7

33.0
