What is a Forged Fitting?

Forged Fittings are used for associating or connecting pipes, pimps, valves & other equipments to create a piping system below the size of 2 or 4 inches in diameter. There are mainly two types of forged fittings called socket-weld fittings which are connected to pipes by fillet welds and second one is threaded fittings in which the pipe is screwed onto the fittings. Forged Fitting joints are made by bolting together two Forged fittings with a gasket between them to give a seal.



Types of Forged Fitting

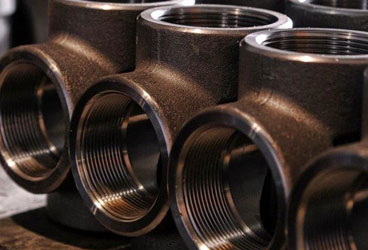

Threaded Fittings

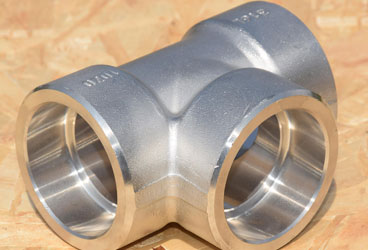

Socket Weld Fittings





Standard Specification for Forged Fittings

Range :	15 NB to 100 NB x 2000# to 9000#
Form :	Socket weld/Threaded – Elbow, Tee, Cross, Reducer, Coupling, cap, Hex Nipple, Hex Plug, Round Plug, Square Plug, Bushing, Union, Weldolet, Threadolet, Sockolet, Elbolet, Nipolet, Flageolet, Latrolet, Sweepolet etc



Material of Construction in Forged Fittings

  Stainless Steel Buttweld Fitting Specifications

Grades: ASTM A182 & ASME SA182 GR F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F316Ti, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L

  Duplex Stainless Steel Buttweld Fitting Specifications

Grades: ASTM A182 & ASME SA182 GR 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61 S32550 etc

  Carbon Steel Buttweld Fitting Specifications

Grades: ASTM A105 / A350 Gr. LF2, LF3, ASTM A694 – F42, F46, F48, F50, F52, F56, F60, F65, F70.

  Alloy Steel Buttweld Fitting Specifications

Grades: ASTM A182 & ASME SA182 GR F1, F5, F9, F11, F12, F22, F91

  High Nickel Alloy Forged Fitting Specifications

Grades:ASTM B564 / A182 GR 200 (N02200), 201 (N02201), Alloy 20 (F20, N08020), 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811), 825 (N08825), 904L (N08904), 400 (N04400), 500 (N05500), C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675).

  Alloy 20 Forged Fitting Specifications

Grades: ASTM B462 & ASME B462 GR Alloy 20 (N08020)

  Titanium Buttweld Fitting Specifications

Grades: ASTM B381 & ASME B381 GR F2, F5 (Ti6AI4V), F7

  Copper & Copper Alloy Buttweld Fitting Specifications.

Grades:ASTM B122, B171, B466, B467 Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass.
